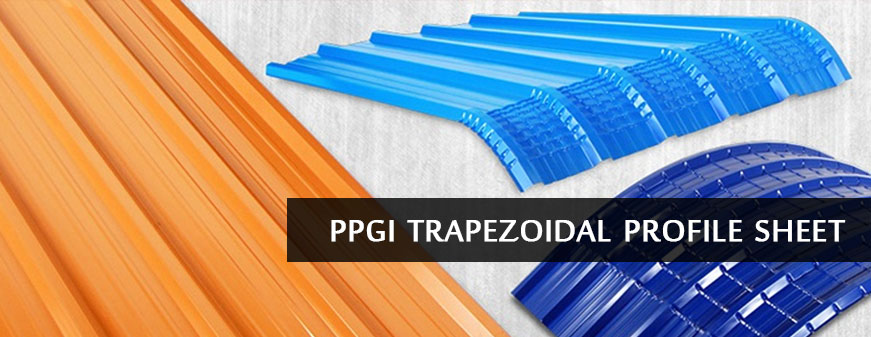

As per the requirements of our clients and demands of the market, we offer large assortment of Trapezoidal Profile Sheet that is used on roof of homes and offices. These are fabricated using qualitative basic material sourced from trustworthy and reliable vendors of the industry and advanced technology in compliance with the set quality standards. These are offered with Total Coating Thickness (TCT) of 0.30mm, 0.35mm, 0.40mm, 0.45mm, 0.47mm, 0.50mm, 0.55mm, 0.60mm and 0.65mm.
Send Enquiry
| Pitch | 200 ± 2 |
| Crest Depth | 30±1 |
| Cover Width | 1000 |
| Sheet Width | 1060 |
| Feeding Width | 1220 |
| Thickness | TCT 0.30 - 0.60 |
| Sheet Length | 12000 Max |
| Roof Slope | 5° Min |
| Purlin Spacing | 1000 to 1500 |
| Application | Roof/Wall Cladding |
| Input Coil Width | 1220mm(Nominal) |
| Cover Width | 1020mm(±10mm) |
| Overall Width | 1080(±20mm) |
| Small Grove Depth | 1.5mm(±1mm) |
| Pitch | 250mm(±2mm) |
| Depth | 30mm (±2mm) |
| Materials | Pre-Painted Galume(Aluminium-Zinc coated) steel Grade 240 to 550 Mpa |
| Thickness | 0.35mm to 0.80mm(Unpainted & Painted & AL-Zn Steel) Tolerance: ±0.03mm |
| Lengths | Any length from 1.0m in 50mm steps Maximum Length: 12.5m recommended due to transport limitations (0.6m for 0.35mm thickness or less) |
| Pitch | 200 ± 2 |
| Crest Depth | 25±1 |
| Cover Width | 1000 |
| Sheet Width | 1100 |
| Feeding Width | 1220 |
| Thickness | TCT 0.30 - 0.50 |
| Sheet Length | 4000 Max |
| Roof Slope | 20° Min |
| Purlin Spacing | Every Alternate Tile |
| Application | Roof Cladding |
